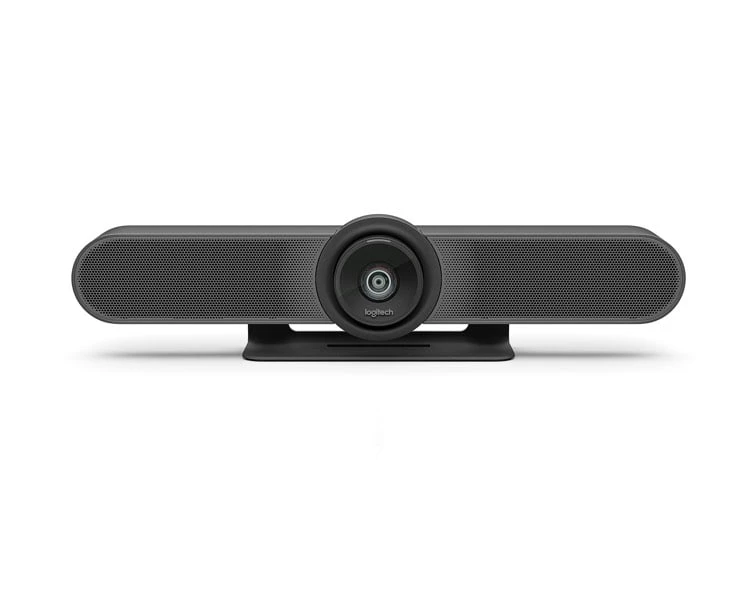

Logitech MeetUp 4K Conferencing Camera
DIMENSIONS
Main unit
Height: 4.09 in (104 mm)
Width: 15.75 in (400 mm)
Depth: 3.27 in (85 mm)
Weight: 2.3 lbs (1.04 kg)
Remote Control
Height: 3.27 in (83 mm)
Width: 3.27 in (83 mm)
Depth: 0.39 in (10 mm)
TECHNICAL SPECIFICATIONS
Camera
Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
Field of View: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
3 camera position presets
RightSight auto-framing: Requires Windows 10 64-bit or macOS 10.14 or higher
Video Performance
4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
720p HD video calling (up to 1280 x 720 pixels @ 30 fps)
Microphone
Integrated microphone with 3 beamforming elements
Pickup RangeMeetUp: 4 m (13.1 ft)
With optional Expansion Mic: 5 m (16.4 ft)
Sensitivity: -27 dB
Microphone frequency response: 90Hz-16KHz for full voice reproduction and high intelligibility without noise
Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Microphone background noise suppression
Microphone date rate: 32KHz sampling rate
Recommended # of participants: 6
Recommended # of participants with expansion mic: 8
Speaker
Volume adjustable to 95 dB SPL at 1/2 meter peak
Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
Distortion: 200-300Hz < 3%, 3000 Hz -10KHz < 1%
Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces
General
Bluetooth wireless technology
RF remote control
Integrated table/wall mount; optional TV mount available
Kensington security slot
COMPATIBILITY
Windows 10, Windows 11 or later, macOS (two most recent versions)
Chrome OS Version 29.0.1547.70 and higher
USB 2.0 port (USB 3.0 Port and cable required for 4K video)
RIGHTSENSE TECHNOLOGIES
Advanced technologies and design innovations that make video collaboration easy and automatic.
RightLight
Low-light compensation
Video noise reduction
Low-light saturation optimization
RightSight
Human figure detection
Auto-frame participants at meeting start
Auto-frame participants on-demand
Auto-reframe when participants enter, leave, or change positions
RightSound
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Auto-level loud and soft voices
Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
Anti-vibration enclosure
COMPATIBILITY AND INTEGRATIONS
Plug-and-play USB connectivity
CertificationsCertified for Skype for Business and ready for Teams
Zoom Certified
Tencent Certified
Certified for Google Hangouts Meet Hardware
Compatibility
RingCentral
Microsoft Cortana
Cisco Jabber
BlueJeans
BroadSoft
Vidyo
