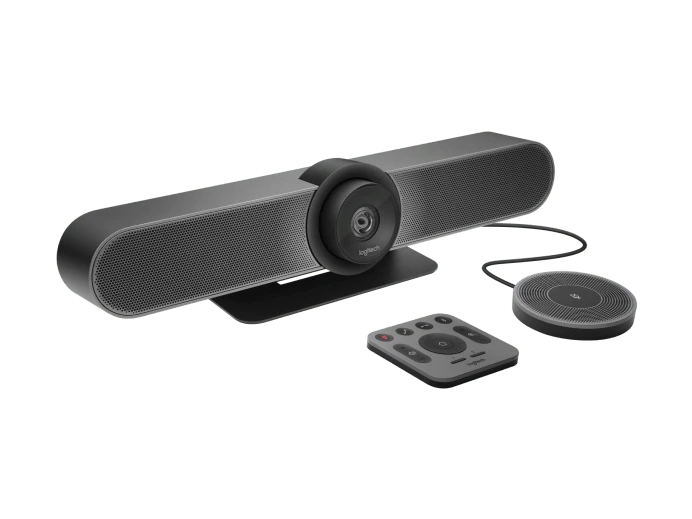

Logitech MeetUp 4K Conferencing Camera + Expansion Microphone

Dimensions

Main unit
Height: 4.1 in (104 mm)
Width: 15.72 in (400 mm)
Depth: 3.35 in (85 mm)
Weight: 2.3 lbs (1.04 kg)

Remote Control
Height: 3.27 in (83 mm)
Width: 3.27 in (83 mm)
Depth: 0.39 in (10 mm)

Technical Specifications

Camera
Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
Field of View: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall 3 camera position presets
RightSight auto-framing: Requires Windows 10 64-bit or macOS 10.14 or higher

Video Performance
4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
720p HD video calling (up to 1280 x 720 pixels @ 30 fps)

Microphone
Integrated microphone with 3 beamforming elements
Pickup RangeMeetUp: 4 m (13.1 ft)
With optional Expansion Mic: 5 m (16.4 ft)
Sensitivity: -27 dB
Microphone frequency response: 90Hz-16KHz for full voice reproduction and high intelligibility without noise
Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Microphone background noise suppression
Microphone date rate: 32KHz sampling rate
Recommended # of participants: 6
Recommended # of participants with expansion mic: 8

Speaker
Volume adjustable to 95 dB SPL at 1/2 meter peak
Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
Distortion: 200-300Hz < 3%, 3000 Hz -10KHz < 1%
Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces

General
Bluetooth wireless technology
RF remote control
Integrated table/wall mount; optional TV mount available
Kensington security slot
